Equipment summary
Specifications and scope
| Unit ID | JJ-138-110-5 |
|---|---|
| Manufacturer | Kolektor ETRA |
| Manufacturer basis | Five-unit opportunity confirmed by seller; rating plate and FAT package reviewed for one unit |
| Rating | 66/88/110 MVA; 22/29.333/36.666 MVA tertiary |
| Voltage / output | 138/34.5 kV with 13.8 kV tertiary |
| Frequency | 60 Hz |
| Vector group | YNyn0+d11 |
| Tertiary | 13.8 kV; confirm winding duty and MVA rating |
| Quantity | 5 units; matching unit packages available on request |
| Availability | Available; 5 units represented; remaining unit packages require review; subject to prior sale and written confirmation |
| Project history | Factory-built for a project that did not proceed to energization |
| Energization history | Never energized |
| Condition basis | Brand new, never used and never energized; 2020 factory records reviewed for one unit |
| Condition confirmed by J&J | |
| Current location | International; dispatch location confirmed with quotation |
| Listing information reviewed |
Technical values and record basis

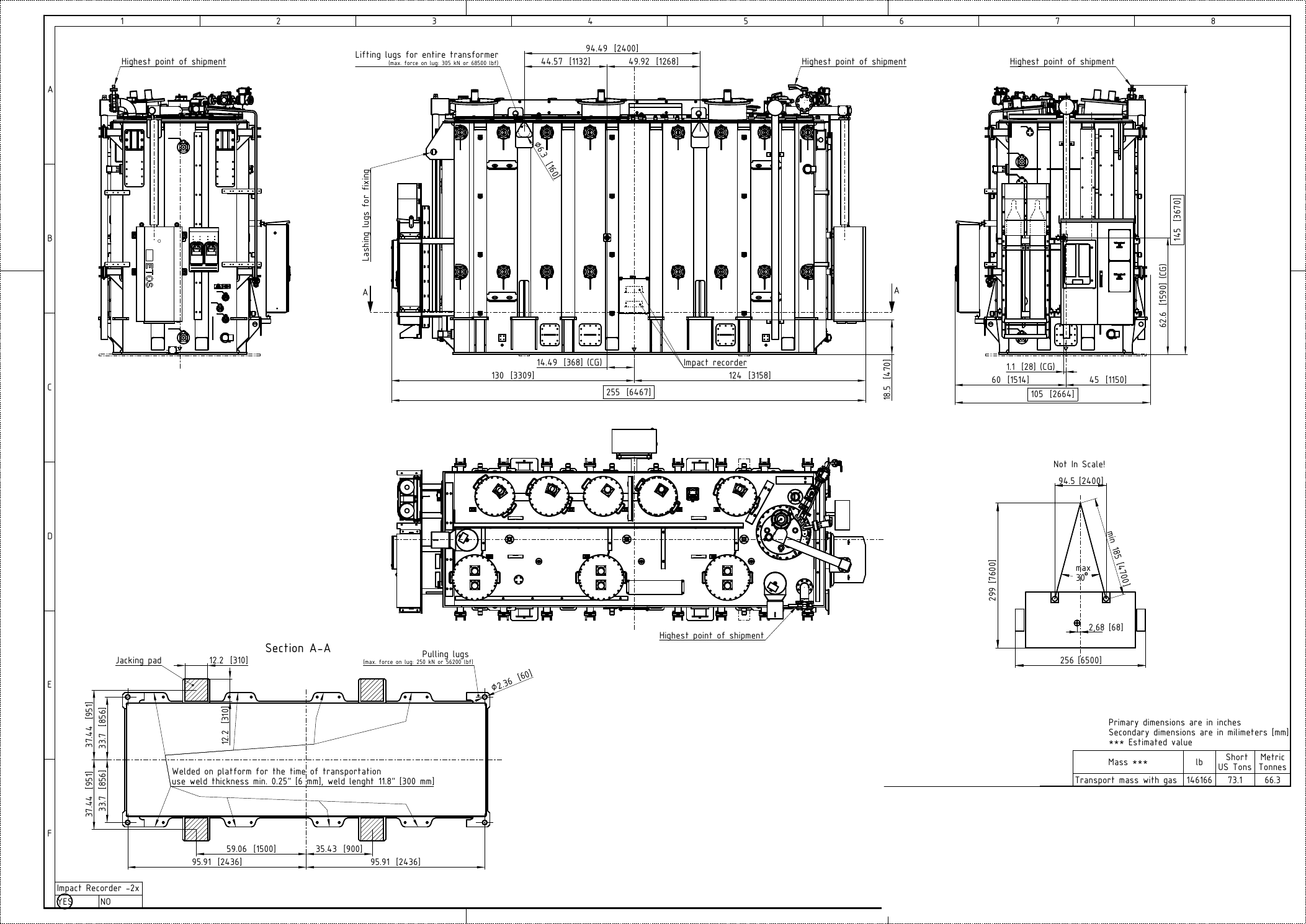

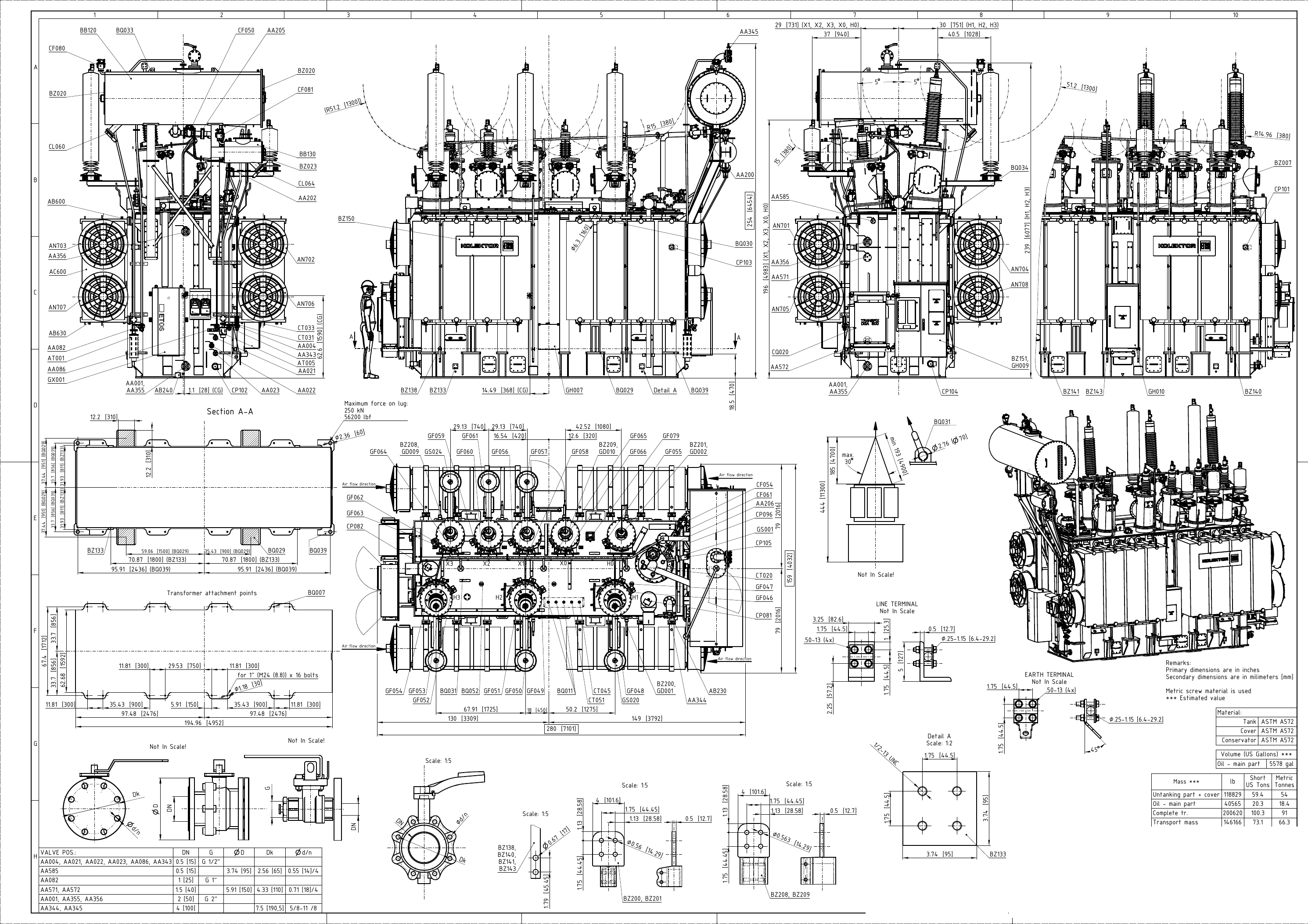

Reviewed nameplate, factory-test package and original general/transport drawings cover individual units in the five-unit lot; verify the selected unit before using these values.
| Phases | Three-phase |
|---|---|
| Cooling | ONAN / ONAF1 / ONAF2 |
| Temperature rise | 65°C |
| Conductor | Copper |
| Tap changer | HV OLTC; 124.2–151.8 kV (±10%); 16 raise / 16 lower steps of 0.625% on the reviewed plate |
| Impedance and base | Reviewed nameplate H–X: 8.09% at 66 MVA; supplied FAT reports 13.41% at 110 MVA. Match the test and plate to the selected unit. |
| Tertiary duty | 13.8 kV; 22 / 29.333 / 36.666 MVA |
| Total weight on reviewed plate | 91,000 kg (200,620 lb) |
| Shipping weight without oil | 66,300 kg (146,166 lb) for the documented unit; verify each package |
| Oil weight | 18,400 kg (40,565 lb); volume not established |
| Manufacture years represented | Two 2020 builds and three 2021 builds |
Details to confirm for this listing
- All five matching nameplates, insulation levels, approved drawings and factory tests
- Reconcile unit-specific impedance bases; confirm current preservation and individual shipping weights
Technical highlights
- GSU duty; ONAN/ONAF1/ONAF2, 60 Hz, three-phase, vector group YNyn0+d11
- Measured impedance: 13.41% on a 110 MVA base at nominal tap
- 2020 factory tests passed; those records do not establish current condition
- Five-unit lot includes two 2020 builds and three 2021 builds; request all five serial-specific packages before quotation
Evidence reviewed
Five-unit opportunity confirmed by seller; rating plate and FAT package reviewed for one unit
Records apply only to the stated unit or design basis.
Availability and terms
Available; 5 units represented; remaining unit packages require review; subject to prior sale and written confirmation
Ask for the current technical package, price, included accessories and delivery terms.
Confirm the purchase and delivery scope
Ask J&J to confirm the proposed unit’s allocation, price, inspection access, included accessories, loading and freight boundary, receiving arrangements, release schedule, deposit or reservation terms and any applicable warranty. Photos, matching records and inspection arrangements are coordinated through J&J.
Request written termsCheck this transformer against your project
Compare the complete winding arrangement and condition evidence before requesting a quote. A matching voltage ratio alone does not establish suitability.
