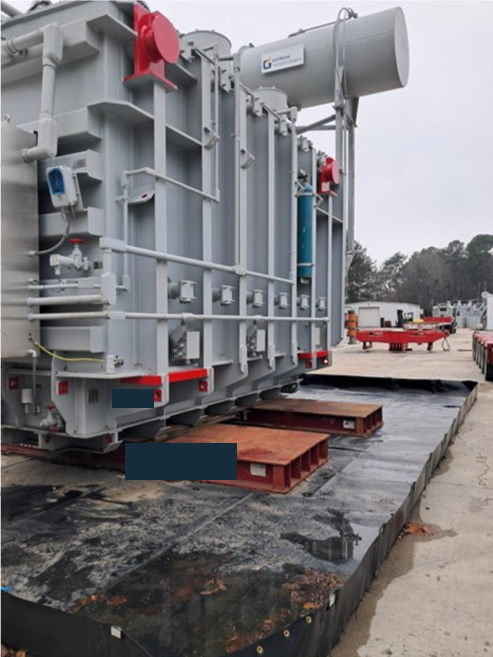

Equipment summary
Specifications and scope
| Unit ID | JJ-TX-004 |
|---|---|
| Manufacturer | Georgia Transformer |
| Manufacturer basis | Serial-specific nameplate and approval drawings reviewed |
| Rating | 72/96/120 MVA; 25.2/33.6/42 MVA tertiary |
| Voltage / output | 138/34.5 kV with 12 kV buried-delta tertiary |
| Frequency | 60 Hz |
| Vector group | YNyn0+d1 |
| Tertiary | 12 kV; confirm winding duty and MVA rating |
| Quantity | 1 documented unit |
| Availability | Available; engineering package reviewed; subject to prior sale and written reconfirmation |
| Project history | Factory-built for a project that did not proceed to energization |
| Energization history | Never energized |
| Condition basis | Brand new, never used and never energized; approval drawings reviewed |
| Condition confirmed by J&J | |
| Current location | USA |
| Listing information reviewed |
Technical values and record basis
Supplied unit nameplate; the nameplate takes precedence over the differing outline-drawing rating.
| Phases | Three-phase |
|---|---|
| Cooling | ONAN / ONAF1 / ONAF2 |
| Temperature rise | 65°C |
| Conductor / fluid | Copper / Type II mineral oil |
| Tap changer | HV OLTC; 117.3–158.7 kV (±15%); confirm the final switch and step schedule |
| Impedance and base | Measured H–X: 6.93% at 72 MVA; design value 7.2% |
| Insulation / BIL | HV line 650 kV; HV neutral, LV line and LV neutral 200 kV |
| Tertiary duty | 12 kV buried delta; 25.2 / 33.6 / 42 MVA |
| Preservation system | Conservator |
| Total weight with oil | 354,362 lb (160,736 kg) |
| Shipping weight without oil | 244,930 lb (111,098 kg); configuration to confirm |
| Oil volume | 11,034 US gal (41,768 L) |
| Manufacture year | 2022 shown on the nameplate |
Details to confirm for this listing
- Resolve the outline-drawing rating discrepancy and confirm the final drawing revision
- Current preservation, complete tests, dimensions and included accessory schedule
Technical highlights
- Solar GSU design; ONAN/ONAF1/ONAF2, 60 Hz, three-phase
- Vector group YNyn0+d1 with HV OLTC and conservator oil system
- Nameplate rating is used; an outline-drawing discrepancy requires final seller confirmation
Evidence reviewed
Serial-specific nameplate and approval drawings reviewed
Records apply only to the stated unit or design basis.
Availability and terms
Available; engineering package reviewed; subject to prior sale and written reconfirmation
Ask for the current technical package, price, included accessories and delivery terms.
Confirm the purchase and delivery scope
Ask J&J to confirm the proposed unit’s allocation, price, inspection access, included accessories, loading and freight boundary, receiving arrangements, release schedule, deposit or reservation terms and any applicable warranty. Photos, matching records and inspection arrangements are coordinated through J&J.
Request written termsCheck this transformer against your project
Compare the complete winding arrangement and condition evidence before requesting a quote. A matching voltage ratio alone does not establish suitability.
- Compare 138/34.5 kV transformers
- Match MVA, voltage, impedance, taps and winding connections
- Review seven transformer condition risks before purchase
For this listing’s photographs, reports, pricing and current status, call 346-276-9540 or email Tommy with unit ID JJ-TX-004.
