Equipment summary
Specifications and scope
| Unit ID | JJ-TX-208 |
|---|---|
| Manufacturer | ABB Power T&D |
| Manufacturer basis | OEM nameplate and supplied technical packet |
| Rating | 80/106.67/133.33 MVA at 55C rise; 89.6/119.47/149.33 MVA at 65C rise |
| Voltage / output | 115 kV grounded wye / 13.2 kV delta |
| Frequency | 60 Hz |
| Manufacture / history dates | 1997 manufacture shown in supplied nameplate |
| Included package scope | Transformer, radiators, cooling fans, bushings, surge arresters, control cabinet and technical documentation represented in the supplied offer |
| Received offer date | |
| Vector group | Grounded wye / delta; clock to confirm |
| Tertiary | Not documented; confirm the complete winding arrangement |
| Quantity | One offered unit; subject to prior sale and written allocation |
| Availability | Offered for inspection and purchase; current release, disassembly and loading dates require written confirmation |
| Condition basis | Pre-owned installed surplus; detailed service history requires confirmation |
| Current location | Location confirmed with quotation |
| Listing information reviewed |
Technical values and record basis
Supplied OEM nameplate and drawings; historical oil-analysis summary is separate from current condition.
| Phases | Three-phase |
|---|---|
| Cooling | OA / FA / FA |
| Conductor | Copper HV and LV |
| Impedance and base | 6.0% at 80 MVA |
| Tap changer | Five-position de-energized HV tap changer, ±2 × 2.5% (±5%); 120.75 to 109.25 kV |
| Core-and-coil weight | 205,200 lb |
| Oil volume | 11,900 US gal |
| Oil weight | 89,250 lb |
| Preservation system | Sealed tank |
| Tank design | Full vacuum / 10 psi internal |
| Shipping weight on drawing | 248,500 lb in dry air |
| Total in-service weight | 350,450 lb |
| Overall footprint | 283 in L × 230 in W |
| Approximate shipping envelope | 226 in L × 138 in W × 203 in H |
| Height over HV bushings/arresters | 246 in |
| Untanking clearance | 393 in |
| HV bushing removal clearance | 302 in |
| Fan supply | 230 V single-phase |
| Current transformers represented | 3 HV: 1200/5 C800; 3 LV: 6000/5 C800; H0: 1200/5 C400; multiratio represented |
| HV surge arresters represented | 3 ABB EXLIM-P 96 kV represented |
| Protection / monitoring represented | Qualitrol pressure relief, sudden-pressure relay, oil/hot-spot temperature and liquid-level monitoring |
| Control scope represented | Automatic transfer between two auxiliary supplies; two-stage cooling controls, lockout/alarm, voltage monitoring, two 7.5 kVA auxiliary transformers and cabinet heater |
| Insulation / BIL | HV winding and bushing 550 kV; LV winding/bushing and HV neutral 110 kV |
| Temperature-rise ratings | 80 / 106.67 / 133.33 MVA at 55°C; 89.6 / 119.47 / 149.33 MVA at 65°C |
Details to confirm for this listing
- Current inspection, complete oil laboratory reports, service history and accessory operation/completeness
- Vector clock, final dismantling/loading schedule and current transport dimensions/weights
Technical highlights
- OEM nameplate and supplied technical packet.
- Design/nameplate basis: OA/FA/FA, 60 Hz, 55C / 65C dual ratings; Grounded wye / delta.
- Tap changer: Five-position de-energized tap changer, +/-2 x 2.5% (+/-5%).
- Impedance: 6.0% at 80 MVA; BIL: HV 550 kV; LV and HV neutral 110 kV.
- Supplied June 2026 oil-analysis summary and OEM drawings/nameplate; inspection and complete reports available through J&J for qualified review.
- Request current service history, inspection and full laboratory reports.

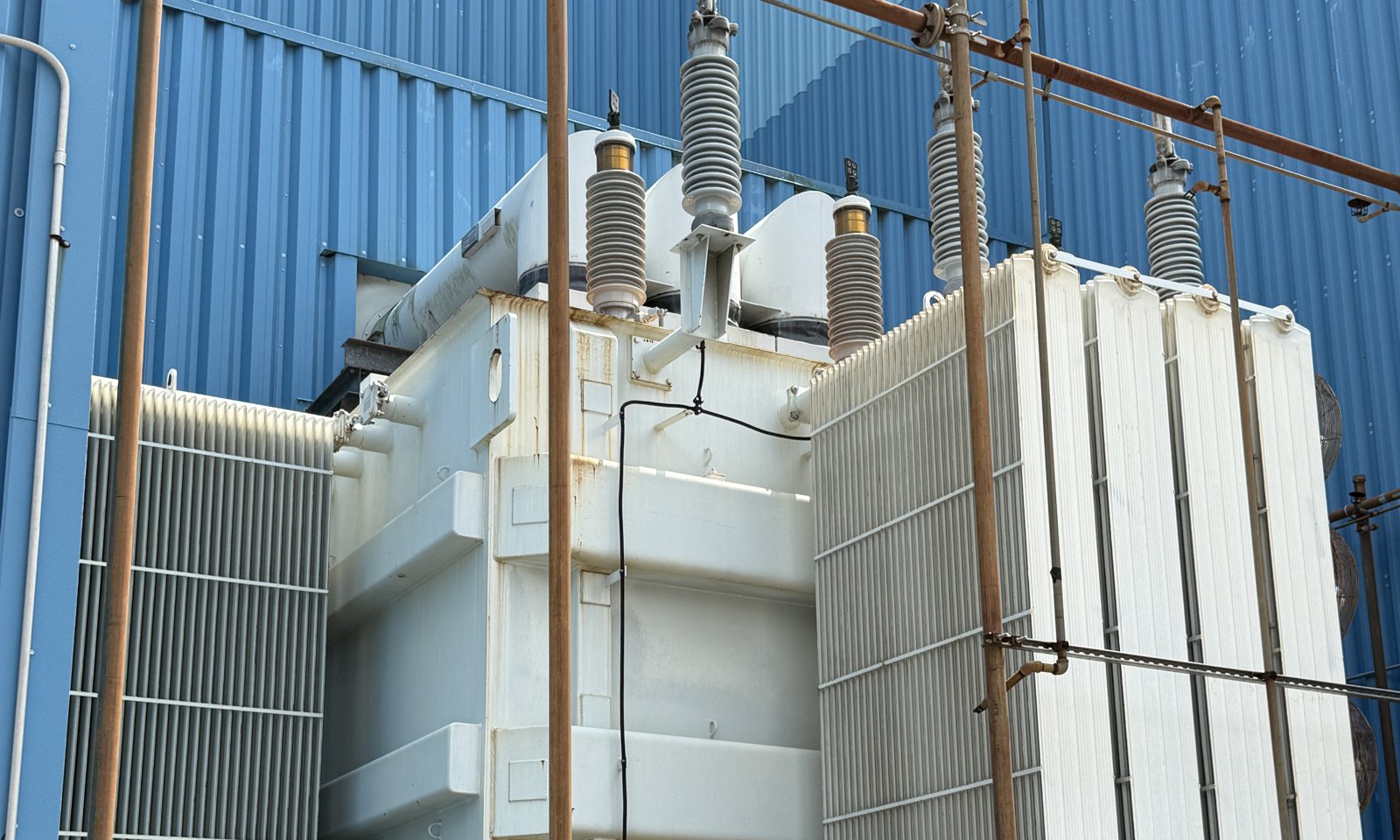

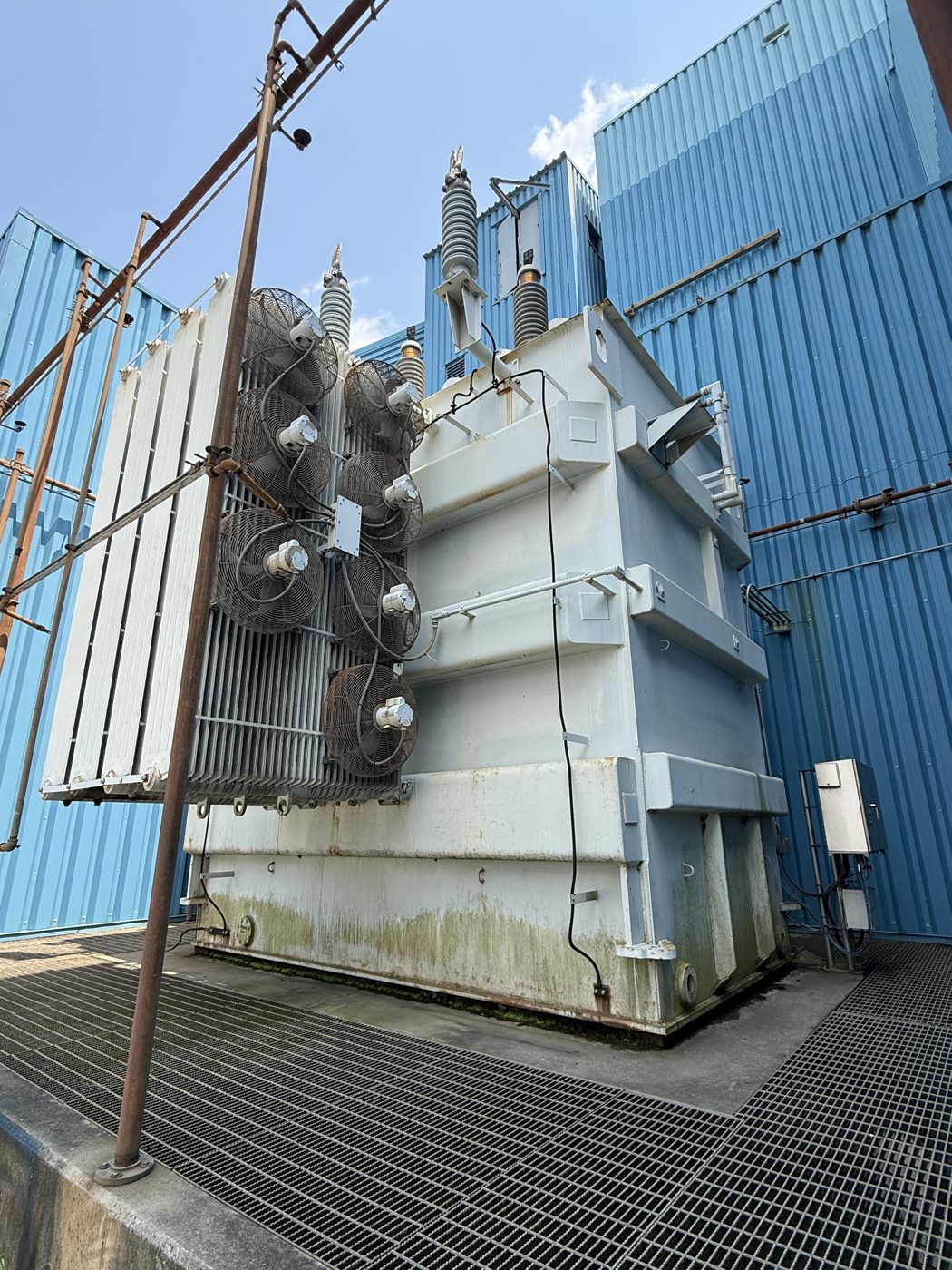

- Two supplied equipment photographs are shown. Current condition and complete accessory scope require inspection; request the current matching photo set through J&J.
- Ask J&J for current price, warranty, inspection and delivery terms.
Evidence reviewed
OEM nameplate and supplied technical packet
Records apply only to the stated unit or design basis.
Availability and terms
Offered for inspection and purchase; current release, disassembly and loading dates require written confirmation
Ask for the current technical package, price, included accessories and delivery terms.
Confirm the purchase and delivery scope
Ask J&J to confirm the proposed unit’s allocation, price, inspection access, included accessories, loading and freight boundary, receiving arrangements, release schedule, deposit or reservation terms and any applicable warranty. Photos, matching records and inspection arrangements are coordinated through J&J.
