Equipment summary
Specifications and scope
| Unit ID | JJ-TX-209 |
|---|---|
| Manufacturer | ABB |
| Manufacturer basis | ABB identified by the supplied replacement nameplate and historical refurbishment/test report; original OEM provenance to confirm |
| Rating | 39/52/65 MVA at 65°C rise |
| Voltage / output | 138 kV grounded wye / 13.8 kV delta |
| Frequency | 60 Hz |
| Received offer date | |
| Vector group | Grounded wye / delta; clock to confirm |
| Tertiary | Not documented; confirm the complete winding arrangement |
| Quantity | One unit; current allocation subject to written confirmation |
| Shipping | 6–8 weeks quoted October 1, 2026; current preparation, loading and delivery schedule to confirm |
| Availability | Offered by J&J; seller indicated 6-8 weeks for preparation/delivery on October 1, 2026. Current inspection, loading and delivery schedule by written confirmation. |
| Condition basis | Reconditioned used transformer; refurbishment completed in 2022 |
| Condition confirmed by J&J | |
| Current location | Location confirmed with quotation |
| Listing information reviewed |
Technical values and record basis
Supplied 2022 replacement nameplate and historical refurbishment/test report; current inspection is still required.
| Phases | Three-phase |
|---|---|
| Cooling | ONAN / ONAF / ONAF; legacy OA / FA / FA in cutsheets |
| Conductor | Copper H and X windings |
| Impedance and base | 9.51% at 39 MVA shown on replacement nameplate; not a new field impedance test |
| Tap changer | Five-position de-energized HV tap changer: 144.9, 141.45, 138, 134.55, 131.1 kV (±2 × 2.5%, ±5%) |
| Core-and-coil weight | 68,400 lb |
| Oil volume | 5,140 US gal total (4,520 tank; 620 radiators) |
| Oil weight | 38,600 lb |
| Preservation system | Nitrogen blanket / mineral oil |
| Tank design | Full vacuum and 10 psi internal |
| Total weight on replacement plate | 150,200 lb |
| Temperature rise | 65°C |
| Insulation / BIL | HV winding 550 kV / bushing 650 kV; LV winding 110 kV / bushings 150 kV; HV neutral bushing 150 kV |
| Manufacture year on replacement plate | 1990; original OEM provenance to confirm |
Details to confirm for this listing
- Confirm the original OEM plate and vector clock; reconcile inconsistent voltage text in the historical test templates
- Current inspection and oil analysis, complete earlier service history, accessories and final handling/shipping dimensions
Technical highlights
- ABB is identified by the supplied replacement nameplate and historical refurbishment/testing report; confirm the original OEM plate and provenance.
- Design/nameplate basis: ONAN/ONAF/ONAF, 60 Hz, 65C; Grounded wye / delta.
- Tap changer: Five-position de-energized HV tap changer (144.9, 141.45, 138, 134.55, 131.1 kV; +/-2 x 2.5%).
- Impedance: 9.51% at 39 MVA as shown in the supplied nameplate drawing; final test values to compare; BIL: HV winding 550 kV; LV winding 110 kV.
- 2022 refurbishment and electrical-test report plus supplied nameplate drawing; no pre-refurbishment test records represented.
- The supplied nameplate drawing states 138/13.8 kV; a voltage field in the 2022 test report states 115/13.8 kV. Obtain reconciliation and a matching current test package before technical acceptance.

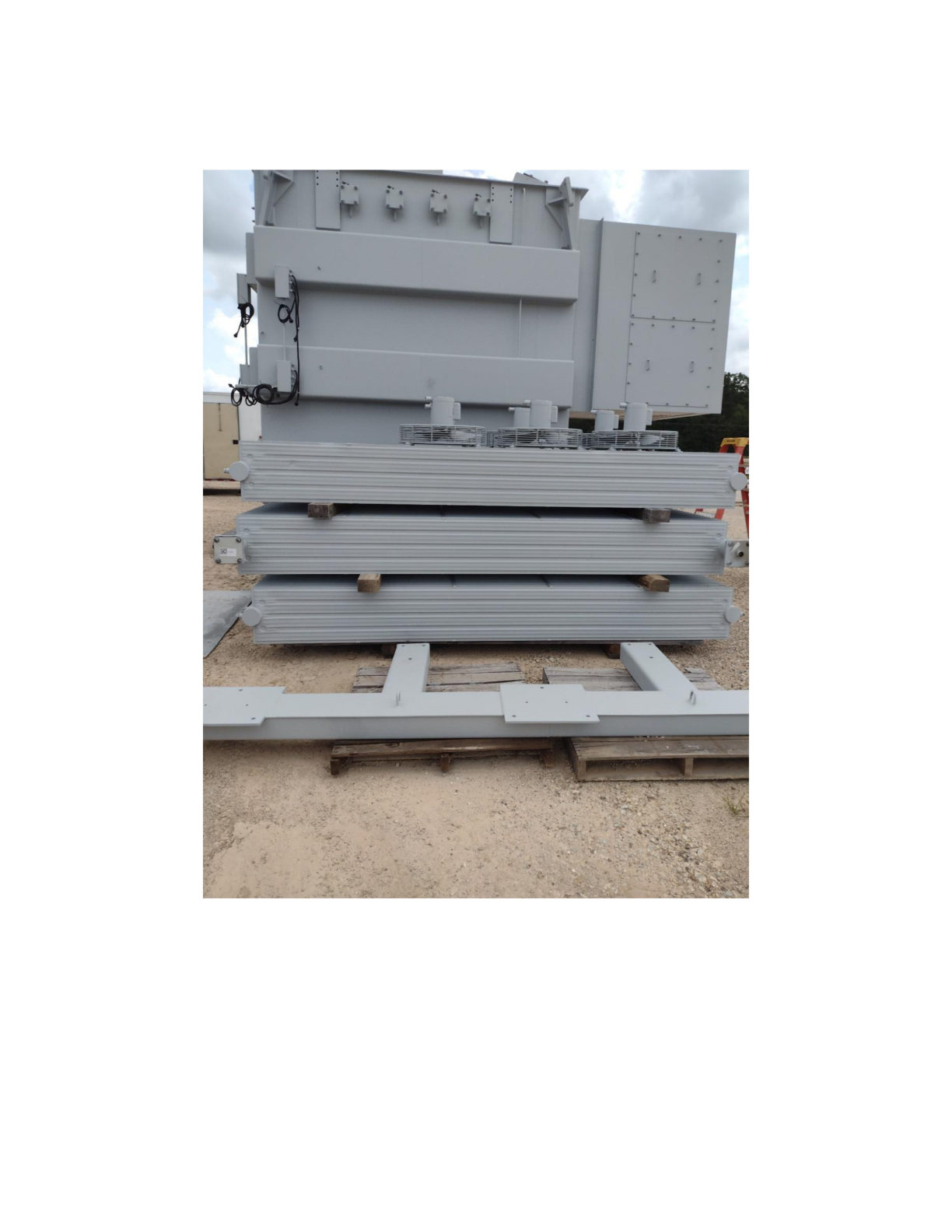

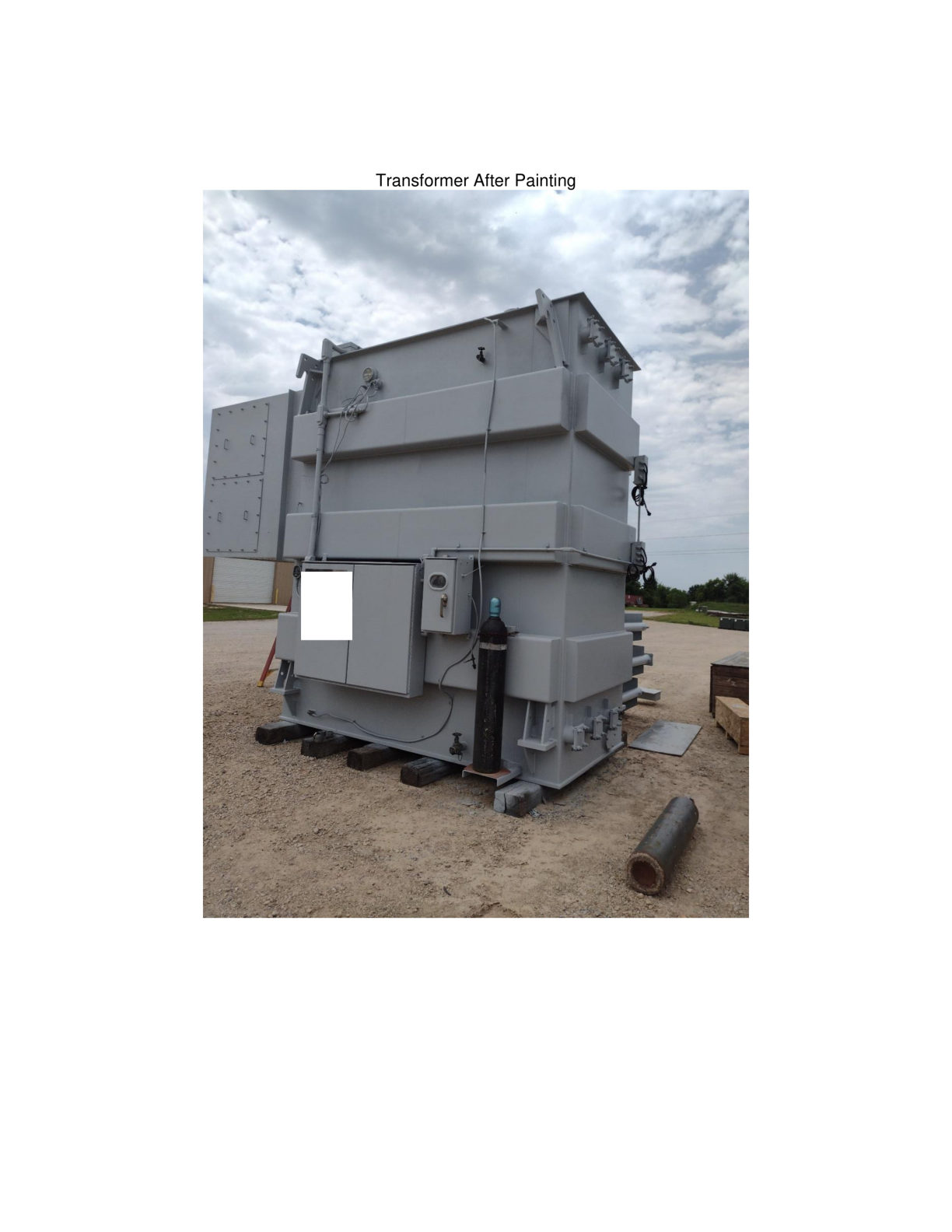

- Exterior photographs shown are from the 2022 refurbishment report. Request current dated photographs and inspect present condition through J&J.
- Seller reports minimal previous service. J&J confirms it has not been installed since the 2022 refurbishment and has been maintained in storage. Earlier operating records are unavailable.
- Documented exterior and cabinet cleaning/painting, bushings and LV bus bars, spare gaskets and bushing hardware; electrical testing included turns ratio, winding resistance, insulation resistance, power factor, excitation current and SFRA.
- Inspection can be arranged with a 10% deposit, refundable only if the unit fails the buyer's tests or does not match the advertised specifications and condition. Confirm exact terms in the written offer.
Evidence reviewed
ABB identified by the supplied replacement nameplate and historical refurbishment/test report; original OEM provenance to confirm
Records apply only to the stated unit or design basis.
Availability and terms
Offered by J&J; seller indicated 6-8 weeks for preparation/delivery on October 1, 2026. Current inspection, loading and delivery schedule by written confirmation.
Ask for the current technical package, price, included accessories and delivery terms.
Confirm the purchase and delivery scope
Ask J&J to confirm the proposed unit’s allocation, price, inspection access, included accessories, loading and freight boundary, receiving arrangements, release schedule, deposit or reservation terms and any applicable warranty. Photos, matching records and inspection arrangements are coordinated through J&J.
