Equipment summary
Specifications and scope
| Unit ID | JJ-GEN-008 |
|---|---|
| Manufacturer | Wärtsilä |
| Manufacturer basis | Supplied engine and ABB alternator nameplates plus the written six-set offer; match records to each selected set |
| Rating | 7.68 MW engine rating; ABB alternator 9.1 MVA at 0.8 power factor per set; net electrical output to confirm |
| Voltage / output | 11 kV |
| Frequency | 60 Hz |
| Fuel | HFO / heavy fuel oil |
| Manufacture / history dates | August 2014 shown on engine plates |
| Operating history | Zero operating hours represented; installation, testing and preservation history require review |
| Included package scope | Six engine-generator sets with oil separators, heat exchangers, air compressors and control panels represented; exact delivered scope to confirm |
| Received offer date | |
| Quantity | 6 offered sets |
| Availability | Offered subject to prior sale; current availability and release schedule to confirm |
| Condition basis | New / unused and zero operating hours reported; current preservation and condition to confirm |
| Current location | Location confirmed with quotation |
| Listing information reviewed |
Technical values and record basis
Supplied W16V32 engine and ABB alternator nameplates for the written six-set offer; match each selected engine-generator set to its records.
| Engine model and rating | Wärtsilä W16V32; 7680 kW engine rating at 720 RPM |
|---|---|
| Engine manufacture | August 2014 on the reviewed engine plates |
| Fuel | HFO / heavy fuel oil confirmed in the written offer |
| Alternator | ABB AMG 0900XU10 LSE on the reviewed plate |
| Electrical duty | 9100 kVA / 9.1 MVA at 0.8 power factor; S1 duty; 7.28 MW electrical nameplate equivalent before auxiliary loads and site derating |
| Voltage and connection | 11 kV, Y connection |
| Generator speed | 720 RPM |
| Protection and cooling | IP54; IC8A1W7; IM1101 on the alternator plate |
| Ambient and cooling water | 50°C ambient; cooling water 34.0 m³/h, maximum +38°C on the alternator plate |
| Alternator weight | 26,000 kg; alternator only, not complete set shipping weight |
| Auxiliaries represented | Oil separators, heat exchangers, air compressors and control panels; final quantities and delivered scope to confirm |
Details to confirm for this listing
- All six matching alternator records, current allocation, actual hours/testing and preservation/inspection findings
- Guaranteed net electrical output at project conditions; aggregate package output claims require reconciliation
- Factory tests, warranty terms, exact auxiliary schedule, complete dimensions and shipping weights
- Dismantling, loading, packing, transportation and release schedule
Technical highlights

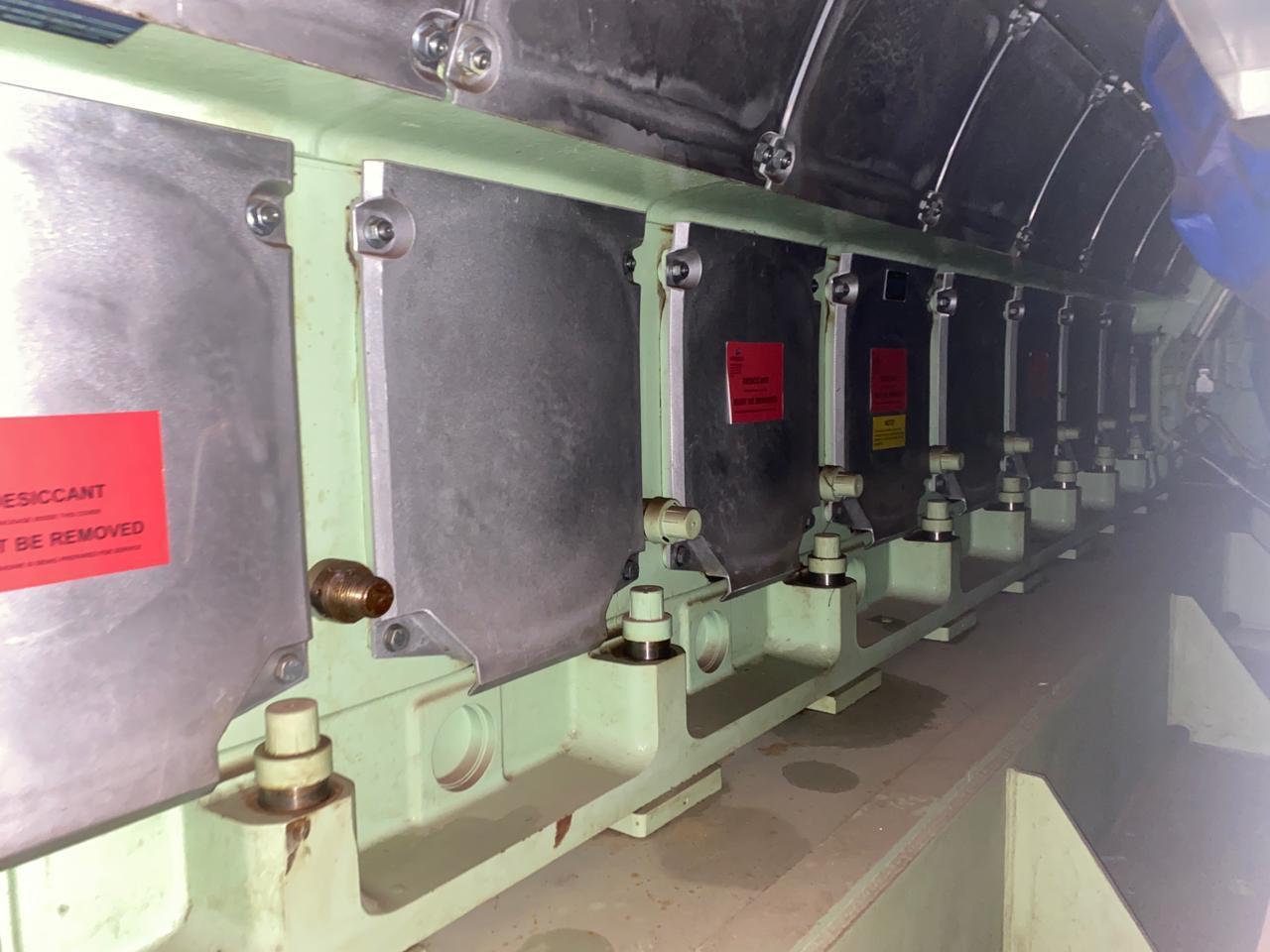

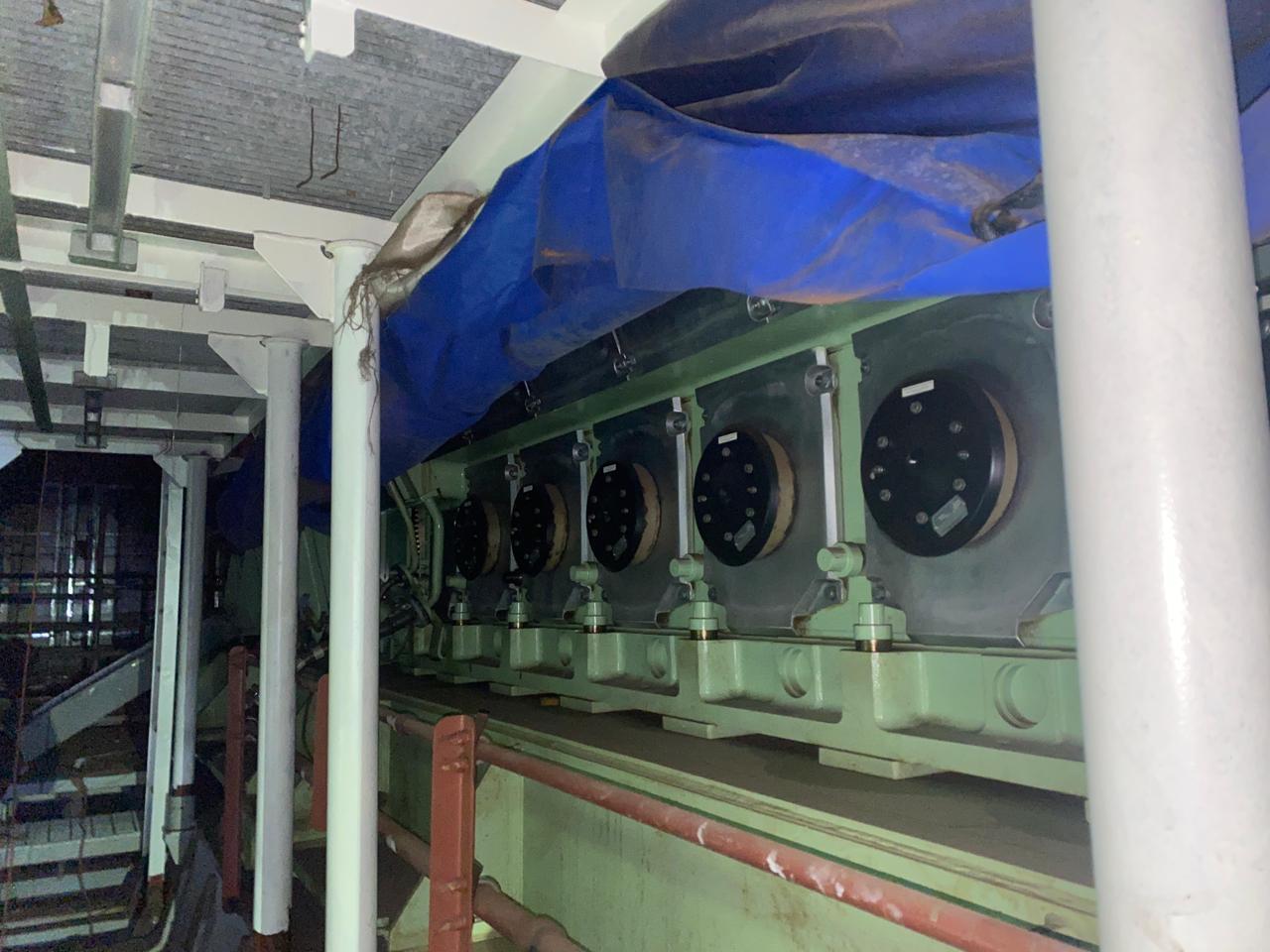

- Two original equipment photos from the October 5, 2026 offer are shown. Photo capture dates were not supplied; request a current inspection and preservation records.
- W16V32 engine plates show 7680 kW at 720 RPM. The ABB alternator plate shows 9100 kVA at 11 kV, 60 Hz and 0.8 power factor, equivalent to 7.28 MW electrical nameplate duty before auxiliary loads and site derating.
- Engine power, alternator capacity and guaranteed net electrical output are separate values. Aggregate output claims in the received package conflict; no unverified package MW total is published.
- This six-set HFO offer is separate from the sixteen-set 50 Hz Wärtsilä 20V34SG natural-gas plant.
- Confirm all six matching generator records, current allocation, preservation, auxiliaries, factory tests, warranty, dismantling/loading responsibilities and release schedule before purchase.
Evidence reviewed
Supplied engine and ABB alternator nameplates plus the written six-set offer; match records to each selected set
Records apply only to the stated unit or design basis.
Availability and terms
Offered subject to prior sale; current availability and release schedule to confirm
Ask for the current technical package, price, included accessories and delivery terms.
Confirm the purchase and delivery scope
Ask J&J to confirm the proposed unit’s allocation, price, inspection access, included accessories, loading and freight boundary, receiving arrangements, release schedule, deposit or reservation terms and any applicable warranty. Photos, matching records and inspection arrangements are coordinated through J&J.
Request written termsCheck this package against your project
Compare electrical output, duty, frequency, fuel, site conditions, operating history and included equipment. Request matching nameplates, maintenance/overhaul records and test reports for the specific package.
- Match the generator, GSU transformer and circuit breaker
- Review 50 Hz and 60 Hz package compatibility
- Compare generator step-up transformer requirements
How is availability confirmed for this package?
Offered subject to prior sale; current availability and release schedule to confirm. The received offer date and record review are not a current reservation. Ask J&J for written allocation, price and release timing.
What equipment is included?
Six engine-generator sets with oil separators, heat exchangers, air compressors and control panels represented; exact delivered scope to confirm. Confirm the complete equipment schedule, accessories, controls, loading, dismantling where applicable and shipment scope in the quotation.
How do I request the technical package?
Email tommy@jjtransformers.com with reference JJ-GEN-008, required MW, voltage, frequency, fuel, quantity and needed-on-site date, or call 346-276-9540.
